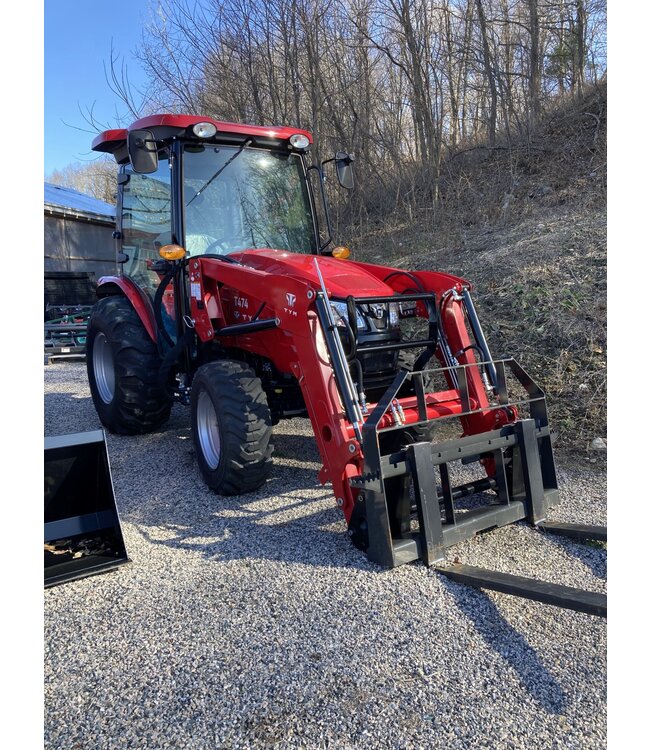

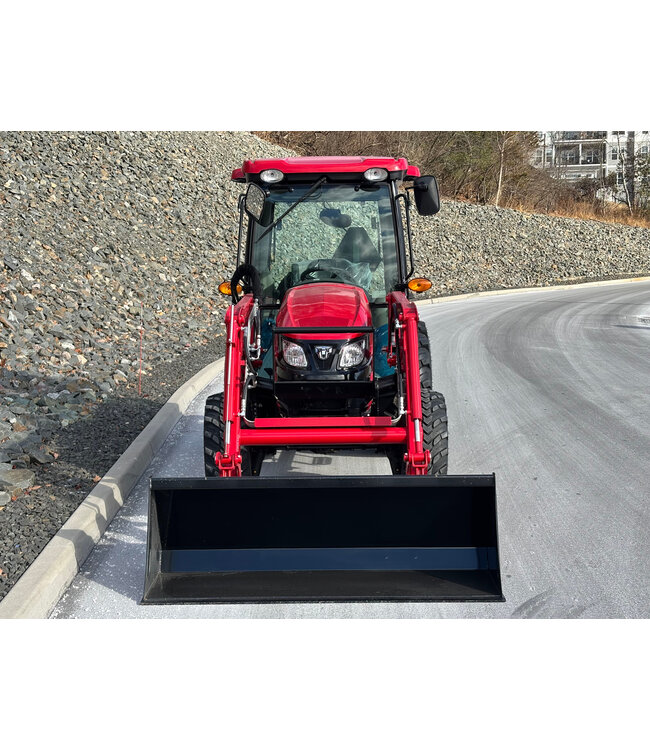

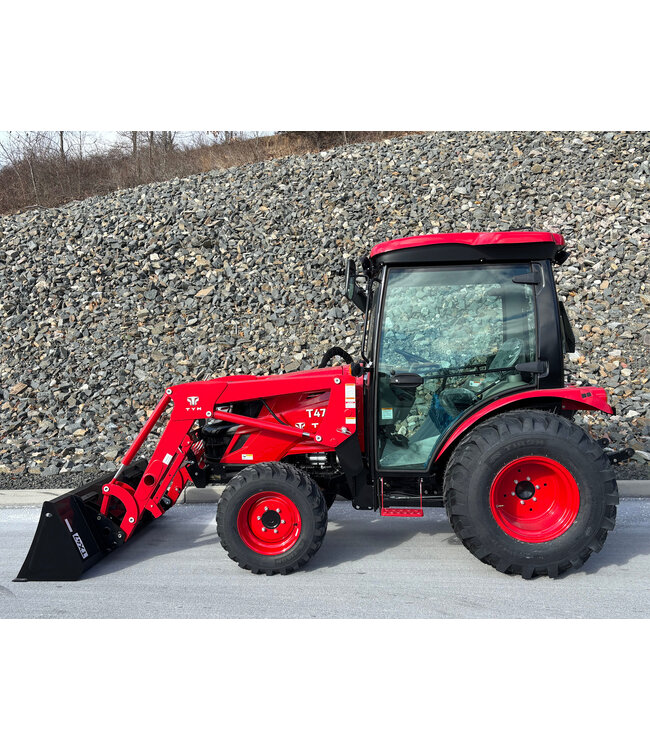

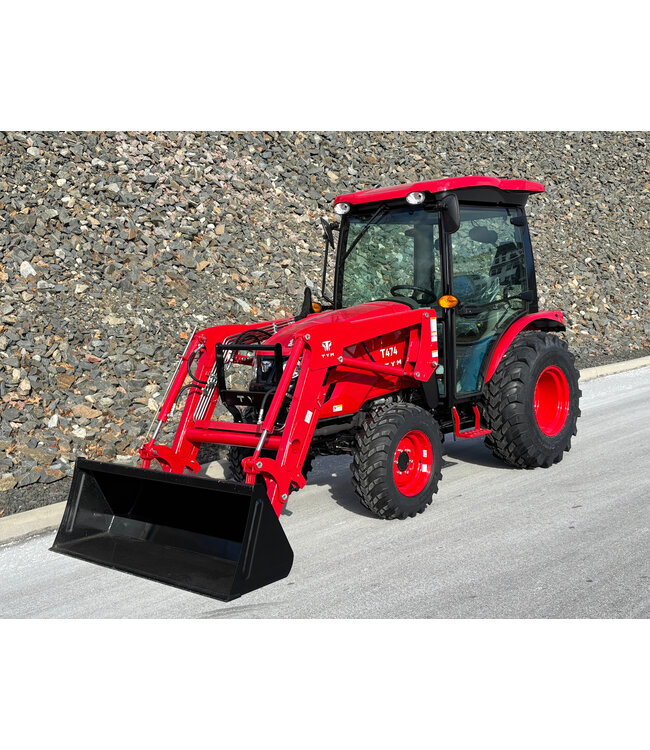

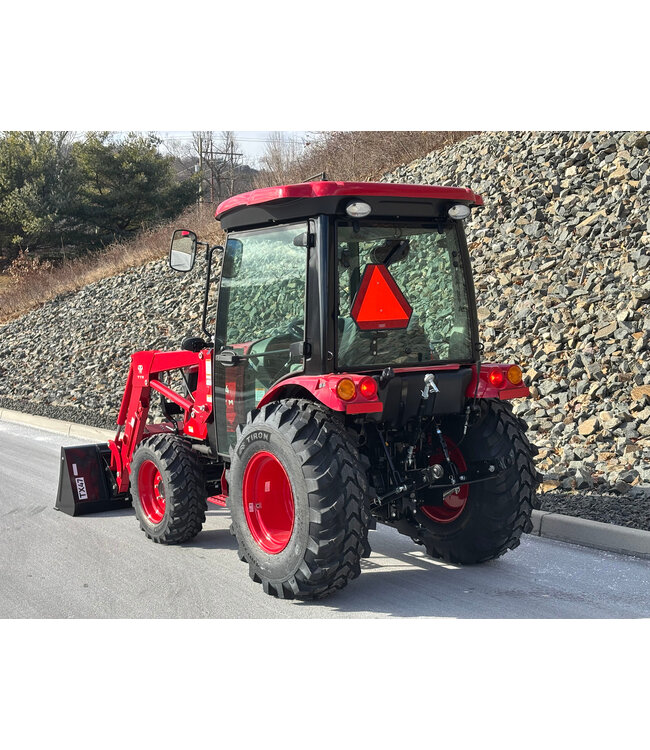

TYM T474 Tractor with Cab and Loader
$33,674.00
Excl. tax
In stock (1)
Take on harder tasks in smaller spaces with the T474C, proven to be durable and engineered to be efficient. This tractor is a workhorse that is easy to control in greenhouses, orchards, and more.
-Engine power 48.3 hp
-Hitch lift capacity 2688.8 lb
Read more..
Technical specifications
T474C |
|
|---|---|
|
ENGINE
|
|
| Engine manufacturer | TYM A2300N2 |
| Type | Natural Aspiration |
| Gross engine power | 48.3 hp | 36 kW |
| PTO power | 35.9 hp | 26.4 kW |
| Rated engine speed | 2600 rpm |
| No. of cylinders | 4 |
| Displacement | 139.5 cu. in. |
| Air cleaner | Single Dry |
| Alternator | 12V, 70A |
| Fuel system | IDI |
|
POWERTRAIN
|
|
| Transmission type | Mechanical |
| No. of speeds | F12xR12 |
| Max. traveling speed | 14.9 mph |
| Brakes | Wet Disc |
| Steering | Hydrostatic |
| Clutch | Dry Single Plate |
|
HYDRAULIC SYSTEM
|
|
| Pump type | Dual Gear Pump |
| Implement flow | 7.66 gpm |
| Steering flow | 4.25 gpm |
| Total flow | 11.91 gpm |

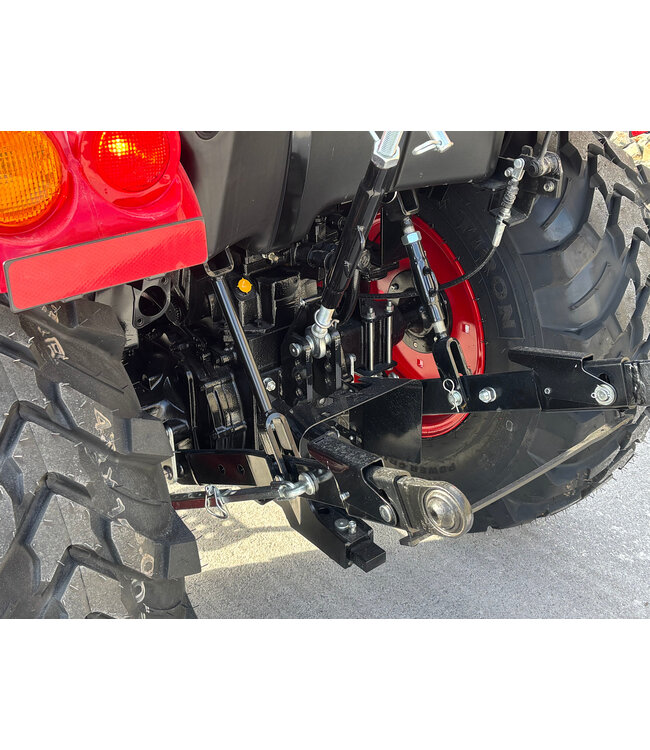

| Category, 3-point hitch | I |
| Hitch lift capacity | 2688.8 lb |
| Hitch lift capacity at 24 inches behind link ends | 1508.4 lb |
| Lift control type | Position |
| No. of standard remote valves | 1 |
|
PTO
|
|
| PTO type | Independent |
| PTO control | Electric/Hydro |
| PTO rear | 540 rpm |
|
CAPACITIES
|
|
| Fuel tank | 9.0 gal |
| Coolant | 6.9 qt |
| Crankcase | 6.8 qt |
| Transmission/Hydraulics system | 8.5 gal |
| Front axle | 8.6 qt |
|
DIMENSIONS & WEIGHTS
|
|
| Overall length with 3-point hitch | 131 in. |
| Overall width | 54.5 in. |
| Wheelbase | 69.7 in. |
| Height to top of ROPS | 94.5 in. |
| Min. ground clearance | 12.8 in. |
| Min. turn radius with brakes | 106.7 in. |
| Min. turn radius without brakes | 117.5 in. |
| Weight with ROPS | 3289 lb |
| Weight with cab | 3607 lb |
| Height to top of cabin | 92.51 in. |
