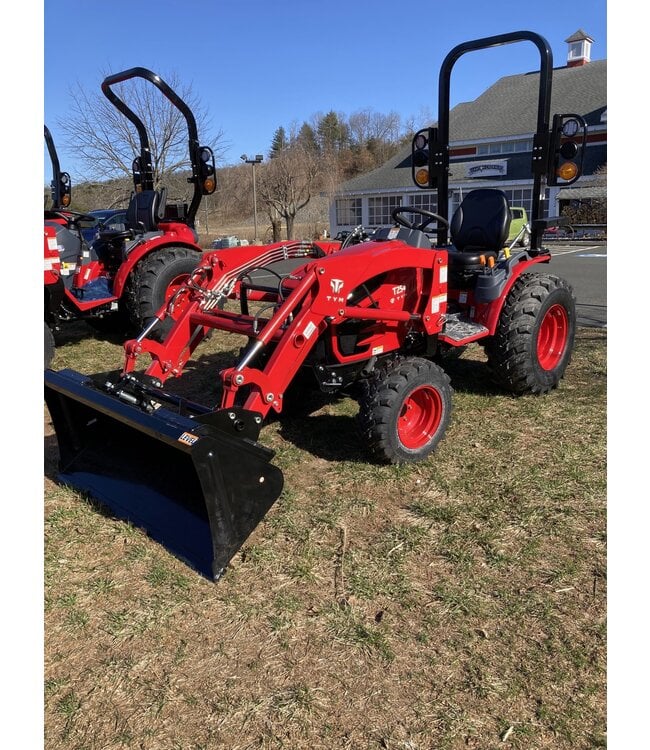

TYM T254 TRACTOR with Loader
$17,515.00
Excl. tax
Out of stock
This tractor is proof that good things can come in small packages. The T254 enables brings you greater power without compromising on maneuverability, backed by a powerful engine and ergonomic operator controls.
Engine power- 23.9 hp
Hitch lift capacity-
Read more..
Technical specifications
Not sure which tractor is right for you? Compare the specifications of each tractor model.
T254 |
|
|---|---|
|
ENGINE
|
|
| Engine manufacturer | Yanmar 3TNV80F |
| Type | Natural Aspiration |
| Gross engine power | 23.9 hp | 17.8 kW |
| PTO power | 18.8 hp | 14.0 kW |
| Rated engine speed | 3000 rpm |
| No. of cylinders | 3 |
| Displacement | 77.3 cu. in. |
| Air cleaner | Single Dry |
| Alternator | 12V, 40A |
| Fuel system | IDI |
|
POWERTRAIN
|
|
| Transmission type | HST |
| No. of speeds | Infinite 2-range |
| Max. traveling speed | 11.0 mph |
| Brakes | Wet Disc |
| Steering | Hydrostatic |
| Clutch | Dry Single Plate |
|
HYDRAULIC SYSTEM
|
|
| Pump type | Single Gear Pump |
| Implement flow | 4.18 gpm |
| Steering flow | 2.77 gpm |
| Total flow | 6.95 gpm |
| Category, 3-point hitch | I (N) |
| Hitch lift capacity | 1214 lb |
| Hitch lift capacity at 24 inches behind link ends | 1101 lb |
| Lift control type | Position |
| No. of standard remote valves | Optional (1) |
|
PTO
|
|
| PTO type | Transmission PTO w/ ORC/Independent |
| PTO control | Electric/Hydro |
| PTO rear | 540 rpm |
|
CAPACITIES
|
|
| Fuel tank | 5.81 gal |
| Coolant | 3.8 qt |
| Crankcase | 2.9 qt |
| Transmission/Hydraulics system | 3.7 gal |
| Front axle | 3.7 qt |
|
DIMENSIONS & WEIGHTS
|
|
| Overall length with 3-point hitch | 100.5 in. |
| Overall width | 45.8 in. |
| Wheelbase | 57.5 in. |
| Height to top of ROPS | 91.3 in. |
| Min. ground clearance | 9.4 in. |
| Min. turn radius with brakes | 88.58 in. |
| Min. turn radius without brakes | 100 in. |
| Weight with ROPS | 1638 lb |
